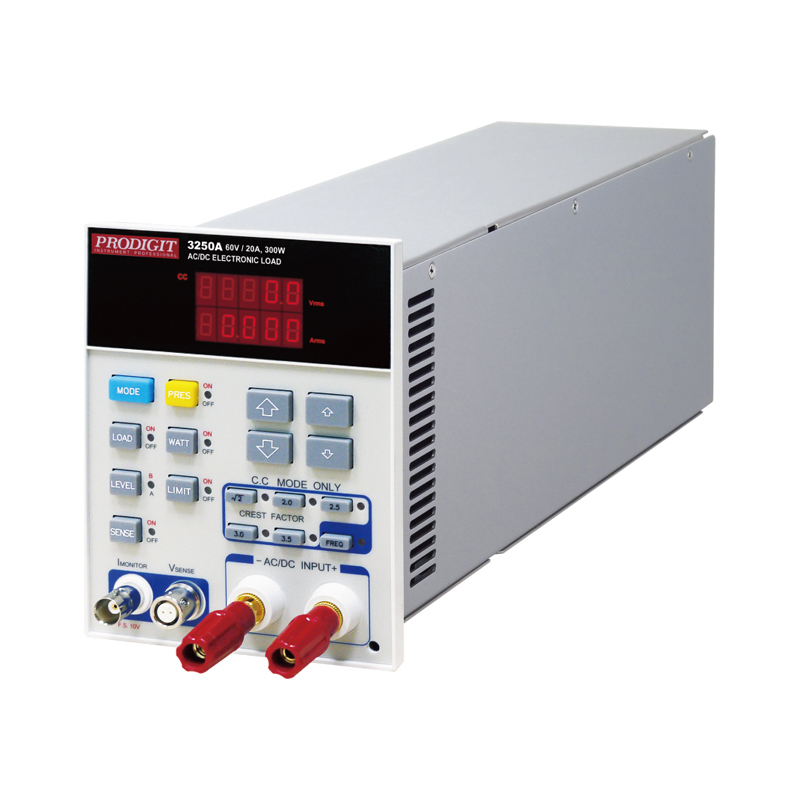

3250A
AC & DC Electronic Load 60V, 20A, 300W
Description
l The 3250A series
AC&DC Load Module is suitable for Sine, Square,
Step wave testing which provides an idea testing solution for UPS, AVR, D/A inverter, especially for step or square waveform U.U.T.
l Each AC&DC Load has it
own control and display panel, plug in 3302C or 3300C with 5 states
l Store/Recall
memory which provides load set-up more efficiently.
l Adjustable power
factor setting (PF, Range : 1, 0.85 ~ -0.85 ) extends
the simulation of test environment.
l
Built-in GO/NG meter check function offers brief test
result diagnosis for production, QC test throughput.
Features
l
Must be configured
in 3302C〔single channel mainframe〕or 3300C〔four channels mainframe〕
l
CC, Linear CC, CR
and Crest Factor mode.
l
Dual 4 1/2 V / A / W
/ VA Meter on each module.
l
Last Setting Memory
on each module.
l
Five Memory on
Mainframe.
l
GO/NG limit Check.
l
Protections against
V, I, W, and ℃.

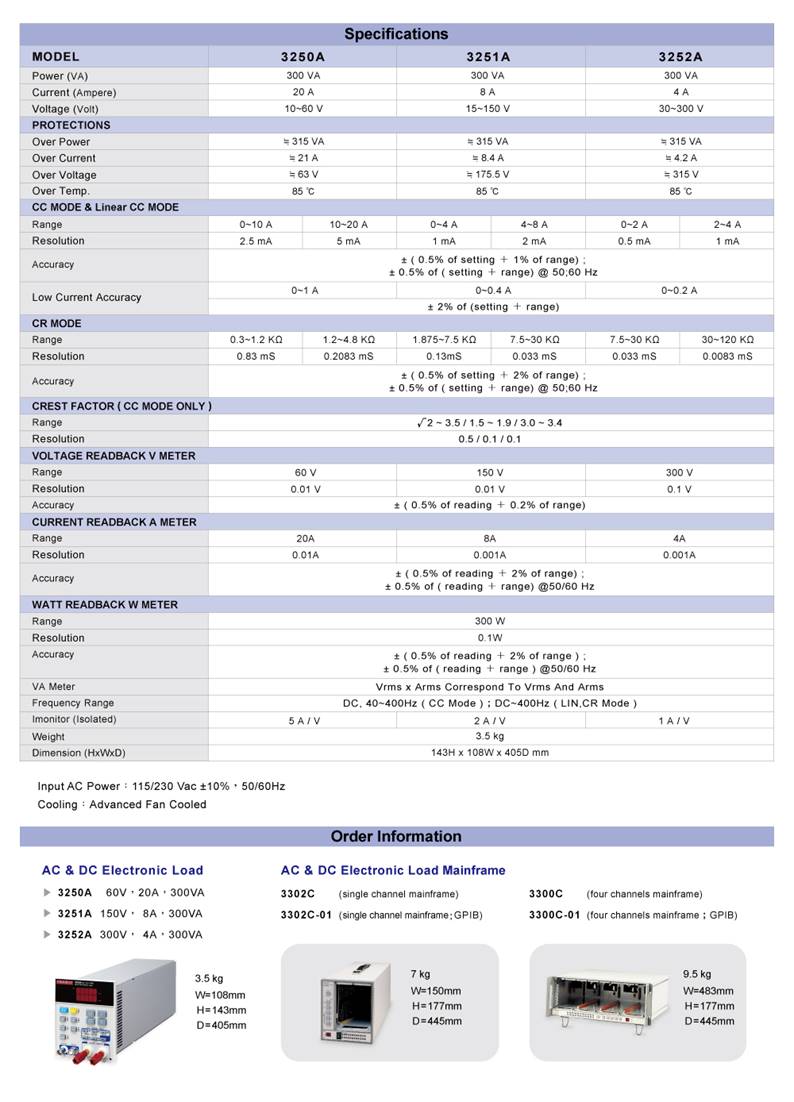

Specifications
